Ethernet Cable - RJ45 Plugs - Crimp Tool - $40 (Chesterfield)
condition:
like new
QR Code Link to This Post

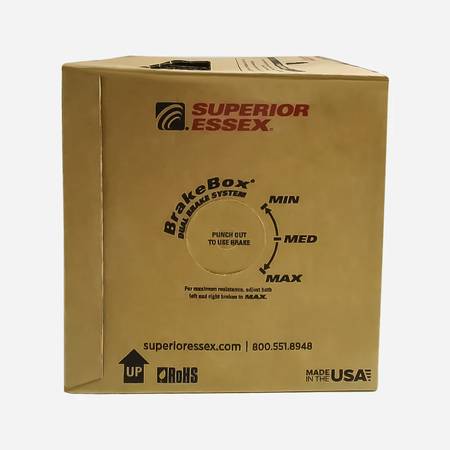

Ethernet Cable - CAT6 Twisted Pair
504 ft Left from a 1000 ft Spool
The Superior Essex 54-246-MB is a high-performance Cat6 Plenum cable that goes beyond standard specifications. This Ethernet cable offers:
- 7 dB margin over typical Cat6 NEXT requirements
- Solid copper conductors
- FEP insulation
- Flame-retardant LS-PVC jacket
- Speeds up to 1000BASE-T
- Supports PoE applications
The cable's positive ACR beyond 300 MHz ensures top-notch performance for bandwidth-hungry tasks. It's plenum-rated for use in air spaces and comes with features like the BrakeBox payout system for easy installation.
------------------------
$25
RJ45 Cat6 Connectors
Round-Solid 3-Prong 8P8C with Liner (2-Piece)
The Platinum 106188J are traditional style modular plugs for terminating RJ45 Cat 6 cables in both telephone and data applications. These 2-piece high performance connectors feature a 3-prong solid conductor contact and are sold in a jar of 100. This 2 piece system makes terminating CAT6 quick and easy. The staggered loading bar acts as the stopping point for pair separation and maintains wiring configuration. Simply flush cut the conductors and slide assembly into the connector and terminate.
Highlights
Eight conductor module plug with loading bar
For conductors with an O.D. range of 0.040
Uses 0.30 mm (0.012)
3 prong contact for solid conductors only
100-per Jar
Max cable jacket O.D., 0.280
RoHS and UL compliant
_____________________________
$25
RJ Modular Plug Crimp Tool
EZ-RJPRO HD Crimp Tool
Platinum Tools 100054C EZ-RJPRO HD Crimp Tool
Designed for telecommunications, information technology, and security professionals, the EZ-RJPRO HD Crimp Tool from Platinum Tools allows for easy installation of Cat 5/5e and Cat 6 connectors. This tool delivers consistent, reliable, and repeatable terminations, even when working with larger outer diameter cables. All the blades are user-replaceable, for a long service life. Proper use assures that every termination will meet FCC specifications.
Compatible with all EZ-RJ45 and EZ-RJ12/11 connectors, as well as all standard modular plugs, except AMP
Ratcheted, high-leverage, stable platform for consistent, repeatable terminations
Patented crimp-and-trim system delivers a clean, flush trim on the extended conductors
Zero flex frame prevents torque loss
Tool steel die head assembly provides 360 degrees of connector support
Full surface-to-surface contact delivers uniform crimp force
Built-in cutter and stripper for flat and round cable
Built-in stripper for round and flat cable
Laser-marked with wiring guide for proper wire sequence
