Hydraulic Hammer Excavator Attachment Bx15-104 hammer 1,500 ft-lbs - $3,000 (Saint Louis)
make / manufacturer:
BTI
model name / number:
Bx15-104
QR Code Link to This Post

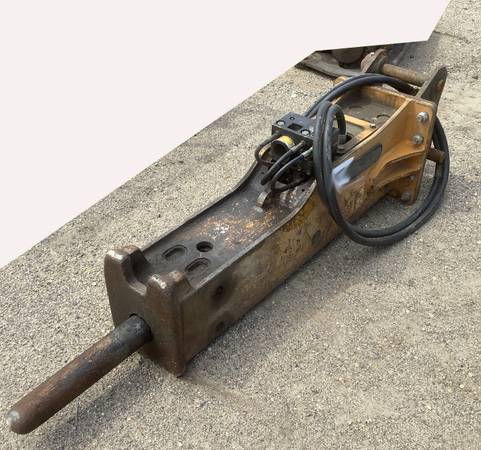

MODEL: Bx15-104 hammer BX15 BTi
Weight: 615kg – No. of Blows: 300-7001/min – Carrying device: 6-9 – Impact energy: 2.035kJ – Total length: 1980mm – Tool Ø: 85mm
Energy impact class 1,500 ft-lbs
Impact frequency range 300 - 700 blows/min
Oil flow range 14 - 27 gpm
Operating pressure range 1,450 - 2,000 psi
Overall length with tool 78" in
Dimensions Working weight 1,355 lbs
Tool diameter 3.3" in
Carrier Manufacturer's recommended carrier size range 13,200 - 19,900 lbs
Weight 615 kg
No. of Blows 300-700 1/min
Carrying device 6-9
Impact energy 2.035 kJ
Total length 1980 mm
Tool Ø 85 mm
Oil flow 50-100 l/min
Operating pressure 140 bar
Measurements best i can tell:
7.5 inch width between bars
2 inch pins, and apart is 11 1/4 about...
*** Video link
https://youtu.be/U-LOTTyWc9g
Works great, Can see work.
Tags: concrete, equipment, break, rock, jack hammer, backhoe, back hoe.
