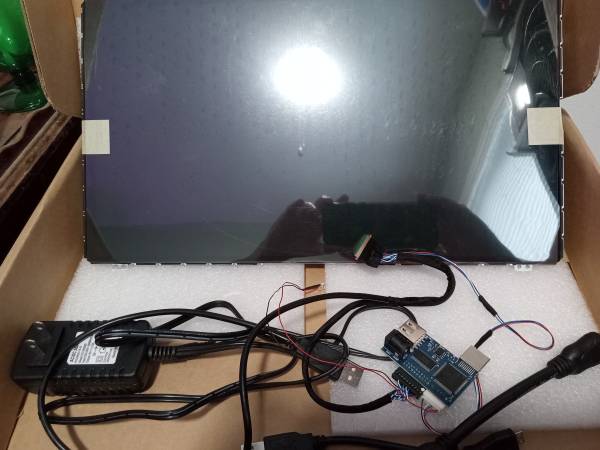

15.6" HDMI interface LCD with capacitive touchscreen - $80
QR Code Link to This Post
10-fingers multi-touch capacitive touch screen with standard Microsoft USB HID protocol
HDMI-LVDS converter board that has all required voltages for LCD, can power RaspberryPi through USB connector, contains PIC controller that can be programmed to provide EDID information (like screen resolution, etc) over DDC/I2C interface and also can control LCD brightness in automatic (with help of ambient light sensor) or manual mode
LVDS cable
ambient light sensor (can be connected as a part of LVDS cable to HDMI-LVDS converter) for automatic LCD brightness control
Additionally you can order power adapter to power whole system (RaspberryPi + HDMI-LVDS converter + LCD), short USB-microUSB cable (7.5cm/3") to power RasPi right from HDMI converter, and LCD holder to conveniently place LCD on working table.
IMPORTANT: LCD backlight requires 6V voltage as per datasheet. We made tests in our lab and found that backlight works stable with voltage down to 5.3V. Our optional AC/DC adapter can provide 5.5V, so it will work seamless with this LCD. Please, take note if you are going to use own power supply.
See in action with RaspberryPi here: http://www.youtube.com/watch?v=eSKmG1VFA4w
See in action with Windows 8 here: http://www.youtube.com/watch?v=VErpOSV_klo
Tested to work with:
- RaspberryPi (all models, including B+)
- Windows 10 IoT
- Windows 7, 8 and 10 PC
- will work with any board that can provide 1366x768 output resolution on HDMI
Mechanical drawing of LCD
Config file for RaspberryPi (rename to config.txt)
